Flame View Wood Cook Stoves by MARGIN STOVES

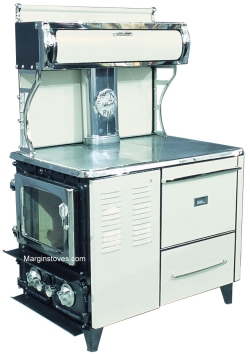

  Flame View 2010-A, Wood Cook Stove

Flame View 2010-A

Wood Cook Stove

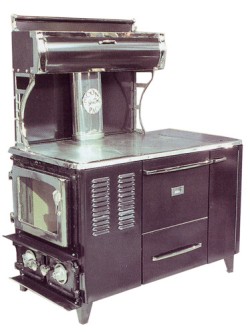

Flame View 2011-B

Wood Cook Stove


margin stoves, wood cook stove, Flame view margin stoves, wood cook stove, Flame view margin stoves, wood cook stove, Flame view, drawer margin stoves, wood cook stove, Flame view, drawer open margin stoves, wood cook stove, Flame view, clean out

Note clean out

margin stoves, wood cook stove, Flame view, cooking surface margin stoves, wood cook stove, Flame view, top clean out

Note clean out

With cleaning tool

margin stoves, wood cook stove, Flame view, warming oven margin stoves, wood cook stove, Flame view, warming oven closed
margin stoves, wood cook stove, Flame view, door margin stoves, wood cook stove, Flame view, draft margin stoves, wood cook stove, Flame view, doors open margin stoves, wood cook stove, Flame view, open margin stoves, wood cook stove, Flame view, U.L. listed
margin stoves, wood cook stove, Flame view, almond margin stoves, wood cook stove, Flame view, side view margin stoves, wood cook stove, Flame view. left side view margin stoves, wood cook stove, Flame view, back view margin stoves, wood cook stove, Flame view, back bottom view
margin stoves, wood cook stove, Flame view, fan margin stoves, wood cook stove, Flame view, tstat control

Note: Fire Box

Water Jacket Connections

margin stoves, wood cook stove, Flame view, draft margin stoves, wood cook stove, Flame view, controls margin stoves, wood cook stove, Flame view, 20 gallon
margin stoves, wood cook stove, Flame view, 20 gallon inside view margin stoves, wood cook stove, Flame view, 20 gallon inside view margin stoves, wood cook stove, Flame view, 20 gallon top off

Flame View Wood Cook Stove

STANDARD FLAME VIEW FEATURES INCLUDE:

  1. Heating capacity of 2,000 square feet or more
  2. Large, airtight firebox will take up to a 22 inch log for an all night burn
  3. Side load firebox enables you to keep cooking or canning without moving pots
  4. High-temperature glass firebox door lets you watch and enjoy the fire
  5. Takes standard firebrick that is inexpensive and easy to replace and install
  6. Dual bell draft supply for glass wash and fast start-up
  7. Double-plated steel cook top for a strong and evenly heated cook top
  8. Cast iron wood grate system
  9. Exclusive "Air Jet" re-burn design
  10. Large ash trays below grates for convenient ash removal
  11. Porcelain exterior finish throughout, standard in black
  12. Porcelain black oven interior
  13. Nickel plate trim
  14. Oven draft control to circulate hot air around oven
  15. Ships with FREE Poker and ash scraper
  16. Limited one-year warranty


SPECIFICATIONS:


WITHOUT RESERVOIR

WITH RESERVOIR


Unit overall width   46"    56"
Unit overall height   64"      64"
Height to cooking surface   34 1/2 "    34 1/2 "
Cast iron cooking top size
(double plate steel over reservoir)
  25" x 40"     25 "x 40"
Firebox size   22" L x 12" W x 18" D   22" L x 12" W x 18" D
Bake oven size   20"W x 20"D x 13"H       20"W x 20"D x 13"H
Exhaust flue size   7"   7"
Reservoir capacity   N/A      5 Gallons
Approx. heating capacity   2000 Sq. Ft.    2000 Sq. Ft.
Approx. shipping weight   650 LBS   700 LBS
Safety tested to   ULC-S627     ULC-S627
     UL-1482    UL-1482




E.P.A.. Phase II Certified

Cook stoves are exempt





Minimum Clearances to Combustibles

Back wall to unit 14"

Back wall to pipe 15"

Side wall to unit 14"

Side wall to pipe 32"

Fuel door to side wall 48"

Oven door to front 48"



Floor Protection

Unit must be placed on a 3/8" (9.5mm) thick millboard or equivalent extending 18" to front and 8" to the sides and rear of unit.
The front in this case being the fuel door end.



Margin Stoves Flame View Model   PRICE


  No Options

  $2,695


Margin Stoves Flame view Options   PRICE

Right-side firebox (left side firebox is standard)   $ 105
Cast iron top cooking surface (for stoves with left side fireboxes only)   $ 185
Water Reservoir on right   $ 419
Color: White or Almond   $ 260
Single stainless steel hot water coil   $ 105
Rear Mount Stainless Reservoir Tank (20 Gallon)   $ 210
Fire Box Water Jacket   $ 135

Double stainless steel hot water coil -80 Gallon plus heating capacity   $ 162
Compact Unit (6 inches shorter)   N/C
Thermostat Control   $ 130
Ornamental Trivets   $ 115
10" Electric Fan & Controls (fits into the back of the stove and blows hot air out the vents in the stove front and side panels)   $ 405
Additional oven rack (comes standard with one rack)   $ 40
Faucet on reservoir   $ 72
Nickel Legs   $ 130


Flame View Order or Shipping Quote Click Here


Margin Stove delivery time

Delivery time is running about

4-6 Weeks
