GEM PAC WOOD COAL COOK STOVES by MARGIN STOVES

The Gem Pac is Margin Stoves economy model.

Margin Stoves, Gem Pac 2021-B, Wood cook stove

Gem Pac 2021-B

Featuring optional Shelf only, water reservoir and black porcelain.

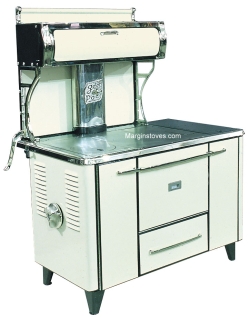

Margin Stoves, Gem Pac 2020-W, Wood Cook Stove

2021-W

Featuring optional warming closet, water reservoir and white porcelain.

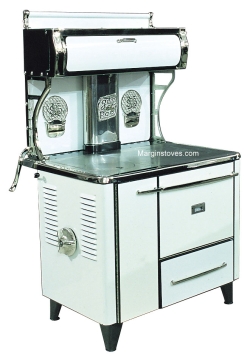

Margin Stoves, Gem Pac 2020-W, Wood Cook Stove

2020-W

Featuring optional warming closet, butter plate warmers and white porcelain.

The Gem Pac has a top load, airtight firebox with a bell draft control and the "air jet" re-burn design, exclusive to Margin Stoves.

margin stoves, wood cook stove, gem pac,

Porcelain Oven

margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac,
margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac,
margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac, margin stoves, wood cook stove, gem pac,
margin stoves, wood cook stove, gem pac,with shelf margin stoves, wood cook stove, gem pac,with shelf

Note: Small

Hot Water Jacket

Left Back of Firebox

margin stoves, wood cook stove, gem pac,with shelf, Water

margin stoves, wood cook stove, gem pac,water front hook up

Note:

Hot Water Fittings

margin stoves, wood cook stove, gem pac,with shelf, controls margin stoves, wood cook stove, gem pac,20 gallon stainless steel Reservoir

20 Gallon Stainless Steel

Reservoir





STANDARD FEATURES INCLUDE:

  1. Heating capacity of 1,500 square feet or more
  2. Airtight, bell draft controlled firebox will take up to a 17 inch log for an all night burn
  3. Takes standard firebrick that is inexpensive and easy to replace and install
  4. Cast iron cook top for a strong and evenly heated cook top
  5. Cast iron wood grate system
  6. Exclusive "Air Jet" re-burn design
  7. Large ash trays below grates for convenient ash removal
  8. Porcelain exterior finish throughout, standard in black
  9. Porcelain black oven interior
  10. Nickel plate trim
  11. Ships with free poker, lid lifter and ash scraper
  12. Limited one-year warranty

OPTIONS:

  1. Full warming closet or shelf only
  2. Available in white, almond or black porcelain
  3. Firebox hot water jacket
  4. 2nd oven rack (comes standard with one rack)
  5. Butter plate warmers on back splash (ornamental only)
  6. 5 gallon water reservoir, copper-lined, with or without faucet
  7. Air jets, liner and coal grate
  8. Lay-on plate for wood burning
  9. 20 Gallon Water Reservoir
SPECIFICATIONS:
      WITHOUT RESERVOIR   WITH RESERVOIR

  Unit overall width   40"    50"
  Unit overall height   62"      62"
  Height to cooking surface   33"      33"
  Cast iron cooking top size
(steel plate over reservoir)
  24 x 35"     24 x 35"
  Firebox size   17" L x 9-1/2" W x 14"D   22" L x 9-1/2" W x 14"D
  Bake oven size   20"W x 20"D x 13"H       20"W x 20"D x 13"H
  Exhaust flue size   7"   7"
  Reservoir capacity   N/A      5 Gallons
  Approx. heating capacity   1500 Sq. Ft.    1500 Sq. Ft.
  Approx. shipping weight   450 LBS   500 LBS
  Safety tested to   ULC-S627     ULC-S627
      UL-1482     UL-1482




  E.P.A.. Phase II Certified Cook stoves are exempt



Minimum Clearances to Combustibles

Firebox Side wall to unit 26"

Firebox Side wall to pipe 39 1/2"

Back wall to pipe 5"

Back wall to unit 6"

Other sidewall to unit 6"

Other Sidewall to pipe 30 1/2"




Margin Stoves Gem Pac Model

  PRICE

No Top/No Back (4 inches above stove top)   $ 2,330



Margin Stoves Gem Pac view Options   PRICE

Water Reservoir on right - Copper Lined   $ 419
Color: White or Almond   $ 260
Water jacket is recommended with rear reservoir




Rear Mount Stainless Reservoir Tank (20 Gallon)   $ 210
Fire Box Water Jacket   $ 135

Compact Unit (6 inches shorter)   N/C
Standard Coal Liner Grate Package   $ 165
Air jets, Liner  & Coal Grate   $ 84
Ornamental Trivets   $ 115
10" Electric Fan & Controls (fits into the back of the stove and blows hot air out the vents in the stove front and side panels)   $ 405
Thermostat Control   $ 130
Additional oven rack (comes standard with one rack)   $ 40
Nickel Legs   $ 130
Faucet on reservoir   $ 72



Gem Pac Order or Shipping Quote Click Here




Margin Stove delivery time

Delivery time is running about

4-6 Weeks
