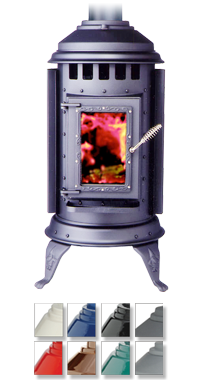

Parlor T-4000 Wood Stove



t-4000 black parlor Stove  T-4000 Wood Stove, Black and Nickel

T-4000 Wood Stove Available in several colors

Painted colors

(charcoal, metallic black, metallic blue, sky blue, metallic brown)

Porcelain enamel colors

(ivory, ebony black, burgundy red, teal green, cobalt blue.

T-4000 Wood Stove

Black and Nickel

Parlour T-4000 Wood Stove, Thelin Parlour T-4000 Wood Stove, top view Thelin Parlour T-4000 Wood Stove, front view Thelin Parlour T-4000 Wood Stove, bottom view Thelin Parlour T-4000 Wood Stove, finial
Thelin Parlour T-4000 Wood Stove, top of stove Thelin Parlour T-4000 Wood Stove, top open view Thelin, Parlour T-4000 Wood Stove, top inside Thelin, Parlour T-4000 Wood Stove,center top Thelin, Parlour T-4000 Wood Stove,door open
Thelin, Parlour T-4000 Wood Stove,inside view

Ash clean out

Ash clean out

Diagram

Thelin, Parlour T-4000 Wood Stove,ash pan left

Note ash removal from either side

Thelin, Parlour T-4000 Wood Stove,ash pan right Thelin, Parlour T-4000 Wood Stove,bottom Thelin, Parlour T-4000 Wood Stove,bottom ash clean out open Thelin, Parlour T-4000 Wood Stove,left side
Thelin, Parlour T-4000 Wood Stove,air control open

Primary air lever open

Thelin, Parlour T-4000 Wood Stove,air control closed

Primary air lever closed



Air lever

Diagram

Thelin, Parlour T-4000 Wood Stove,right side Thelin, Parlour T-4000 Wood Stove,right side full Thelin, Parlour T-4000 Wood Stove,back upper Thelin, Parlour T-4000 Wood Stove,back of stove










For general questions about the T-4000

Fuel: Wood

This EPA certified wood stove surpasses the strictest emission standards in the US, an amazing 3.62 grams per hour (about half the EPA standard of 7.5 grams per hour).

The technology used to create this clean burning stove does not require a catalytic combustor and the secondary combustion technology keeps the door glass clean and ensures a safe, efficient fire that makes burning wood an economical and environmentally friendly heating source.

SPECIFICATIONS

Height: 42"

Weight: 210 lbs

Door Opening: 9.5" x 14"

Diameter: 20"

Flue Diameter: 6"

Footprint: 20" square

PERFORMANCE

*Heating Capacity: 1200-1500ft2

Overall Efficiency: 62%

*Heating Capacity depends upon environment, insulation, and quality of fuel

CLEARANCE

Back wall: 13"

Side Wall: 14.5"

Corner wall: 10"

Floor to Ceiling: 84"

WARRANTY COVERAGE
Thelin Co. Inc. warrants for five
(5) years from the date of retail purchase the steel stove body, cast iron parts, and secondary air tubes.
See Owners manual for Warranty details



Parlour T-4000 Wood Stove features:

bulletEasy to use ash pan that is removable from either side of the stove
bulletFirebox that holds several pieces of 16" long wood or densified logs
bulletBurns all night on seasoned hardwood in the secondary burn mode

Thelin, Parlour T-4000 Wood Stove, Options:

bullet24K gold plated trim package
bulletNickel plated trim package
bulletPainted colors (charcoal, metallic black, metallic blue, sky blue, metallic brown)
bulletPorcelain enamel colors (ivory, ebony black, burgundy red, teal green, cobalt blue.

Owners manual link
